CCMT120408 Cemented Carbide CCMT432 PVD Coated Inserts For CNC Turning Cutting Tool
Description
The base material is made of high-quality hard alloy, which has high hardness, strong wear resistance and stable
performance.Cutting control is stable, effectively reducing cutting resistance and prolonging tool life.Imported
produce machine, fully automatic peripheral grinding process, higher precision, sharp and wear-resistant.
Specifications
| Model No. |
Basic Dimension(mm) |
| L |
ΦI.C |
s |
Φd |
r |
| CCMT060202 |
6.4 |
6.35 |
2.38 |
2.8 |
0.2 |
| CCMT060204 |
6.4 |
6.35 |
2.38 |
2.8 |
0.4 |
| CCMT09T302 |
9.7 |
9.525 |
3.97 |
4.4 |
0.2 |
| CCMT09T304 |
9.7 |
9.525 |
3.97 |
4.4 |
0.4 |
| CCMT09T308 |
9.7 |
9.525 |
3.97 |
4.4 |
0.8 |
| CCMT120404 |
12.9 |
12.7 |
4.76 |
5.56 |
0.4 |
| CCMT120408 |
12.9 |
12.7 |
4.76 |
5.56 |
0.8 |
Made of solid carbide with multilayer coated, offer long tool life and faster cutting speed,
low friction coefficient, good wear resistance.Designed for Steel, cast iron and non-ferrous materials
Used for turning and finishing on a wide range of materials.For Use With Toolholders, Boring Bars.
The CCMT carbide turning inserts we produce has special strength and toughness.
We accept OEM and ODM, and can make unmarked or customized marking.

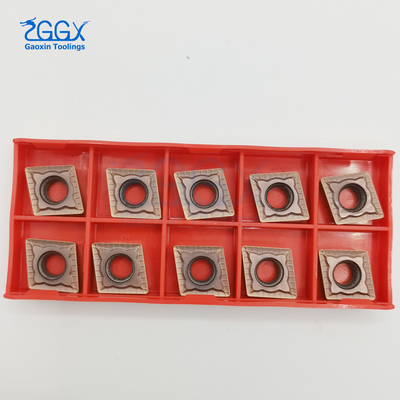

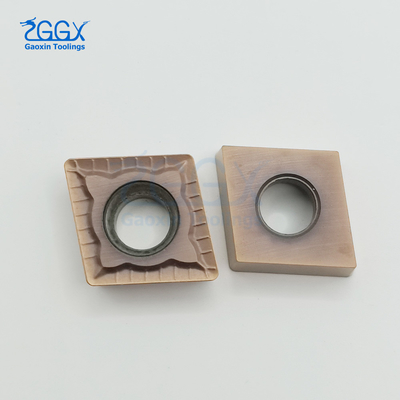

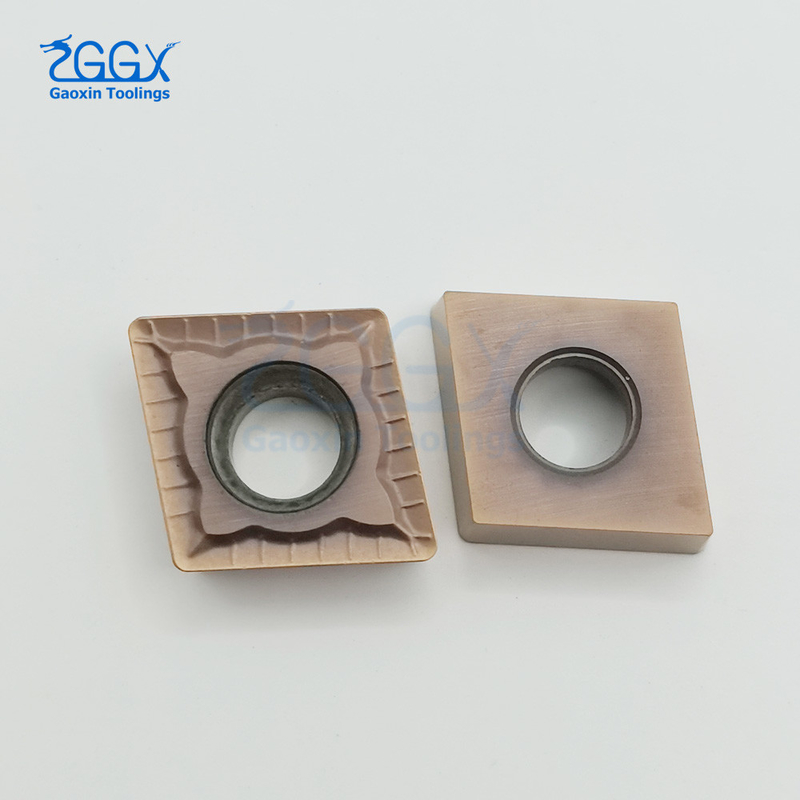

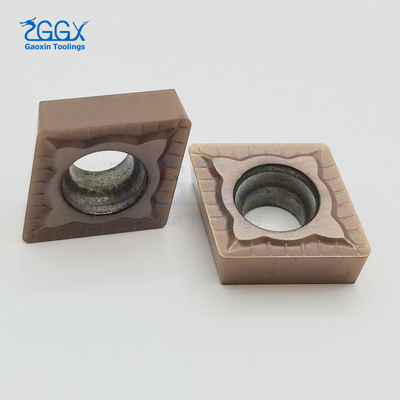

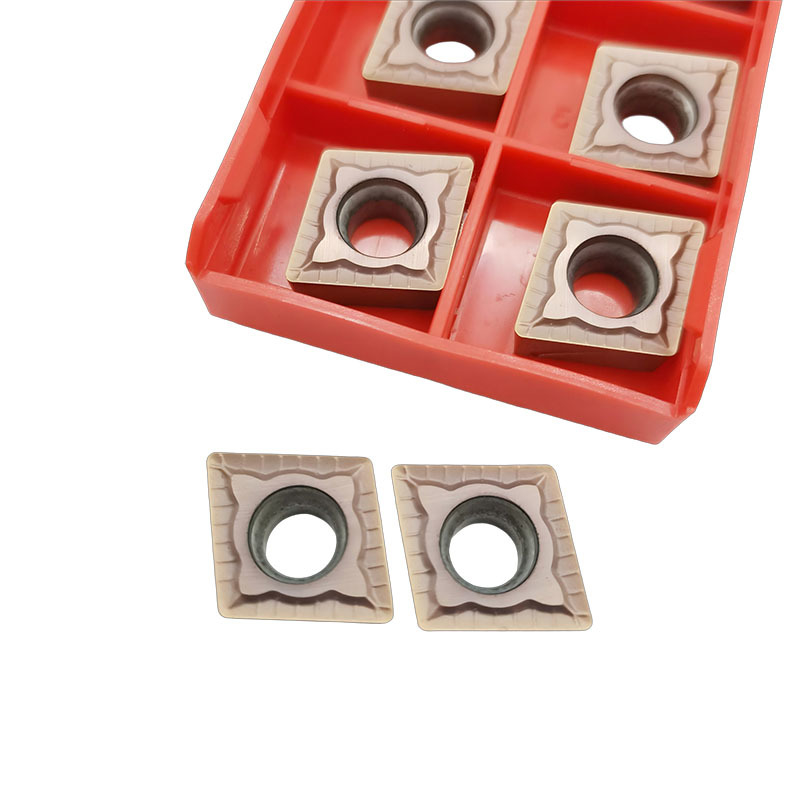

Product images
Our Services & Strength
1. Adopted advanced CNC machine to produce tools which make the high precision.
2. More than 20 years of experience in R&D and production
3. 100% inspection make the high level quality.
4. Provide technical support and online services during working days.
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional carbide inserts manufacturer and has our own factory based in Zigong.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We have skilled personnel who have worked in carbide insert producing for many years.
3)We have been in the business for over 20 years and know what is right for our customers and how to produce qualified inserts for them.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
